The performances of the screws we produce have been tested and approved on the machines of many of our customers. They are abrasion and corrosion-resistant.
Our high standards determine the precise operation of the screw in the barrel. We supervise and monitor every step that will affect the screw quality, such as material quality, measurement precision, and surface roughness, with the standards we have determined.

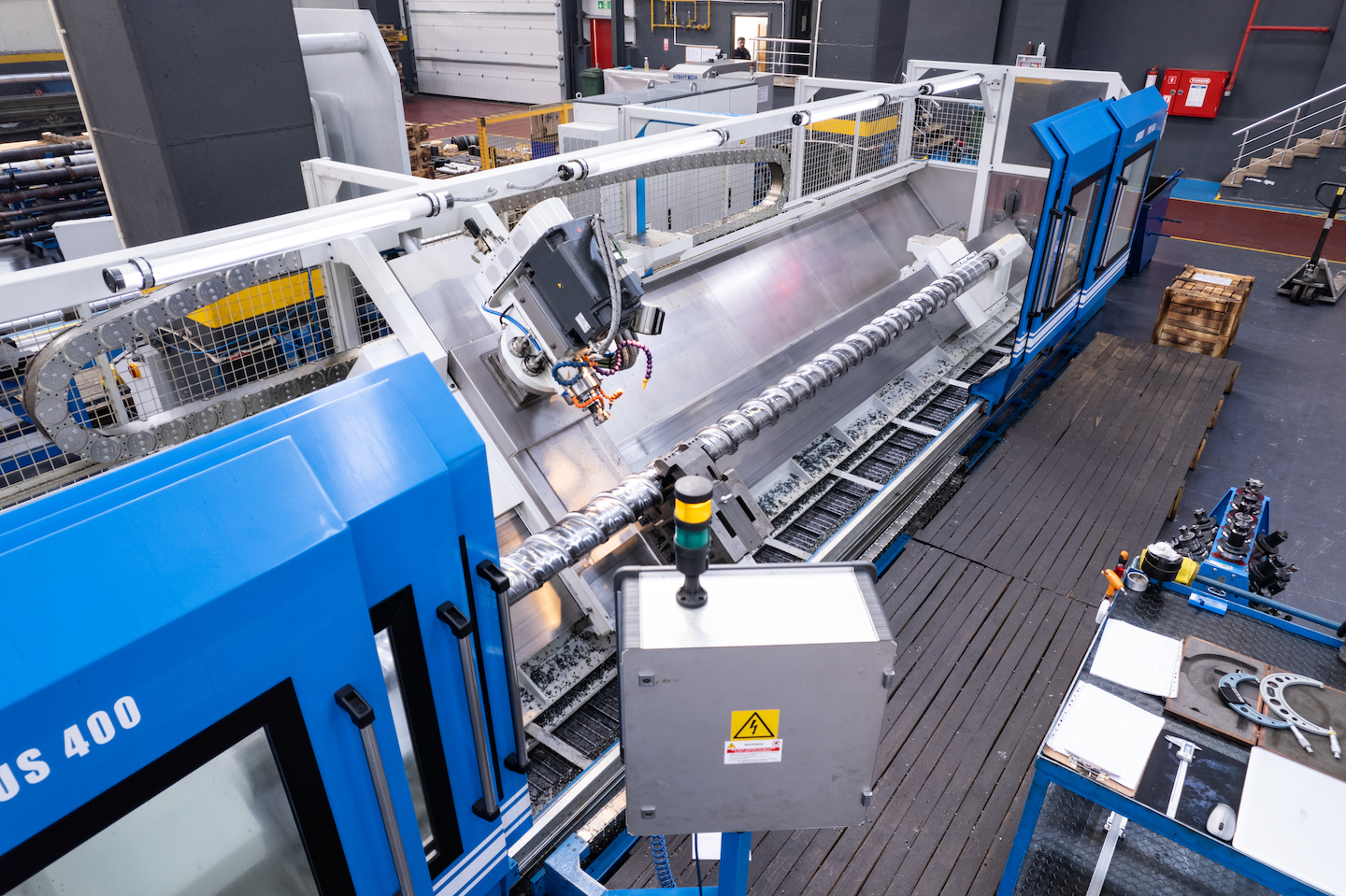

Turkey’s largest CNC screw processing capacity.
Screw production capacities
Min Diameter 20 Length -
Max Diameter 300 Length 7000 mm

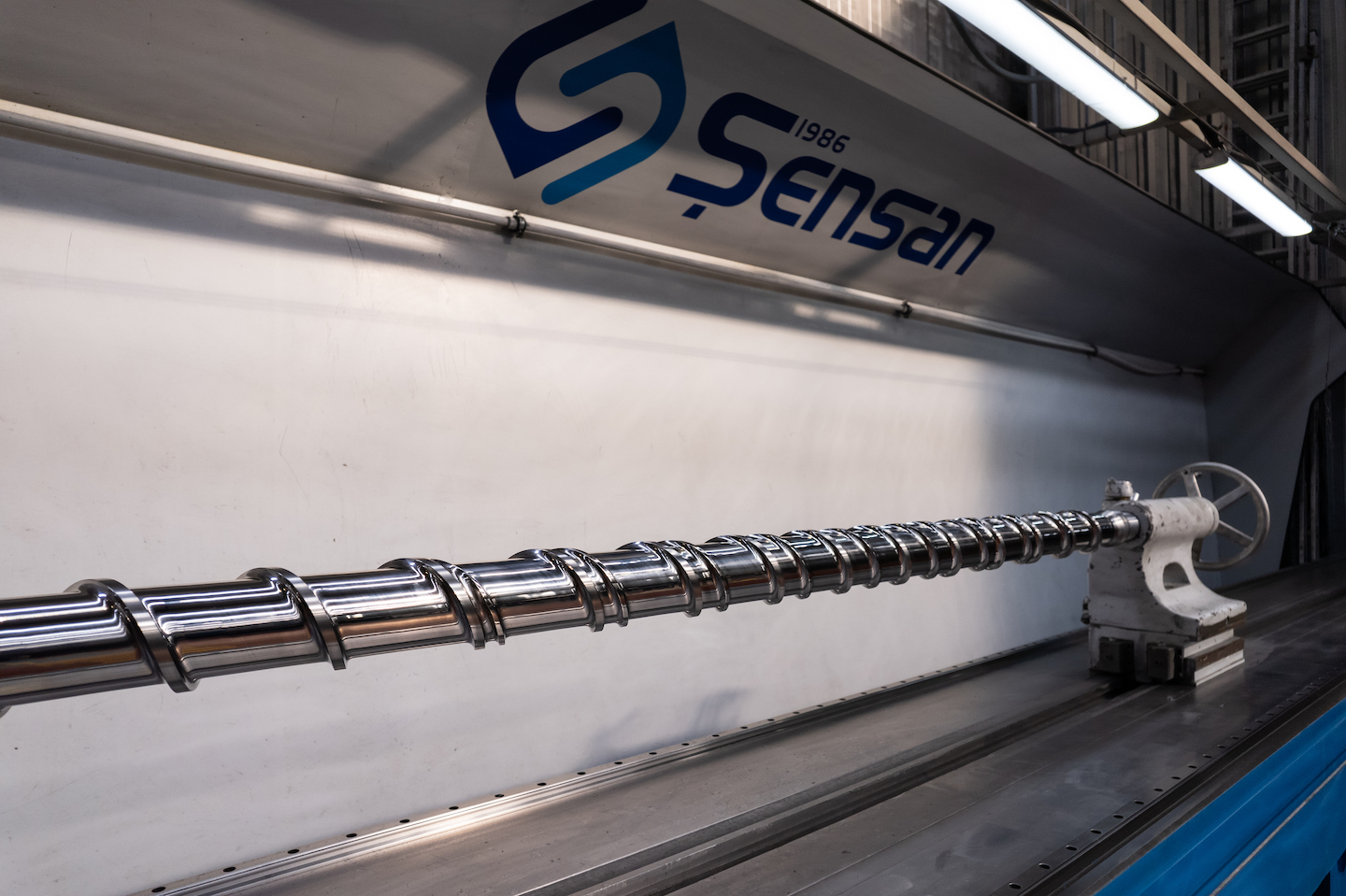

Screw types we produce
Mixer screws - Barrier screws - Flat screws - Degassing screws
Areas of usage
Plastic Injection - Plastic Extrusion - Rubber Injection - Rubber Extrusion
The right material, plating, and heat treatment solutions according to the raw material used.
With the experience we have gained in the sector, we can extend the service life of screws with the right choices.
Productivity
Plastic product aesthetics
Product lifetime
Energy consumption
Plastic product quality
| Material No | AISI | DIN | Abrasion | Corrosion | Surface Hardness | Depth |
|---|---|---|---|---|---|---|
| 1.8519 | - | 31CrMoV9 | *** | *** | 800-850 HV | 0.5-0.6 mm |
| 1.8550 | - | 34CrAlNi7 | *** | *** | 900-1000 HV | 0.5-0.6 mm |
| 1.7225 | 4140 | 42CrMo4 | ** | *** | 600-700 HV | 0.5-0.6 mm |
| Material No | AISI | DIN | Abrasion | Corrosion | Surface Hardness | Depth |
|---|---|---|---|---|---|---|
| 1.8519 | - | 31CrMoV9 | *** | *** | 800-850 HV | 0.25-0.35 mm |
| 1.4122 | - | X39CrMo17-1 | *** | **** | 900-950 HV | 0.1-0.15 mm |
| 1.2316 | - | X38CrMo16 | ** | **** | 900-950 HV | 0.1-0.15 mm |
| Material No | AISI | DIN | Abrasion | Corrosion | Surface Hardness |
|---|---|---|---|---|---|
| 1.2379 | D2 | X153CrMoV12 | **** | **** | 58-60 HV |
| 1.3343 | M2 | S5-5-2 | *** | *** | 55-58 HV |
| 1.4122 | - | X39CrMo17-1 | *** | **** | 54-56 HV |
| CPM 9V | - | - | **** | *** | 58-60 HV |
| CPM S90V(420V) | - | - | **** | **** | 58-60 HV |
| M390 | - | - | **** | **** | 58-60 HV |
